How it works

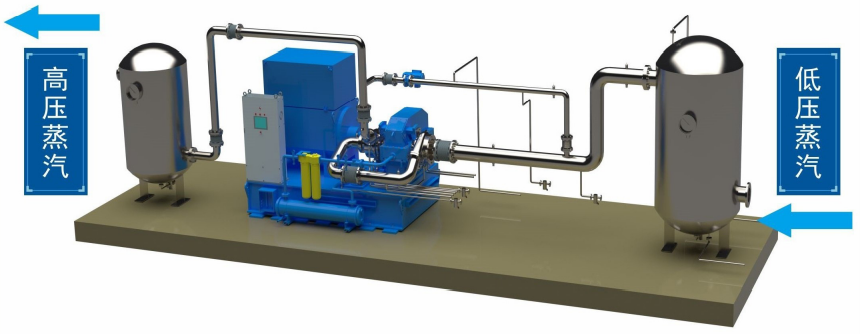

Industrial steam boosting systemIndustrial steam boosting system is an energy-saving system for energy recovery and utilization that recompresses low-pressure steam in industrial applications and compresses low-pressure steam to medium-pressure steam or high-pressure steam. The system is mainly composed of a pipeline system, a control system and a compression system, the low-pressure steam enters the compression system through the pipeline system, and realizes the automatic control of the whole system through the control system, so as to realize the conversion of clean energy electric energy to steam internal energy and the reuse of waste heat and pressure steam, and also reduce the cost of steam consumption in industrial applications, reduce steam waste and carbon dioxide emissions.
Compressor features:
Steam flow range: 1-250t/h
Installed power: 200KW~10MW
High efficiency: up to 82% efficiency
High pressure ratio: single stage 2.4 (high pressure ratio can take multi-stage series)
Noise: Low noise
