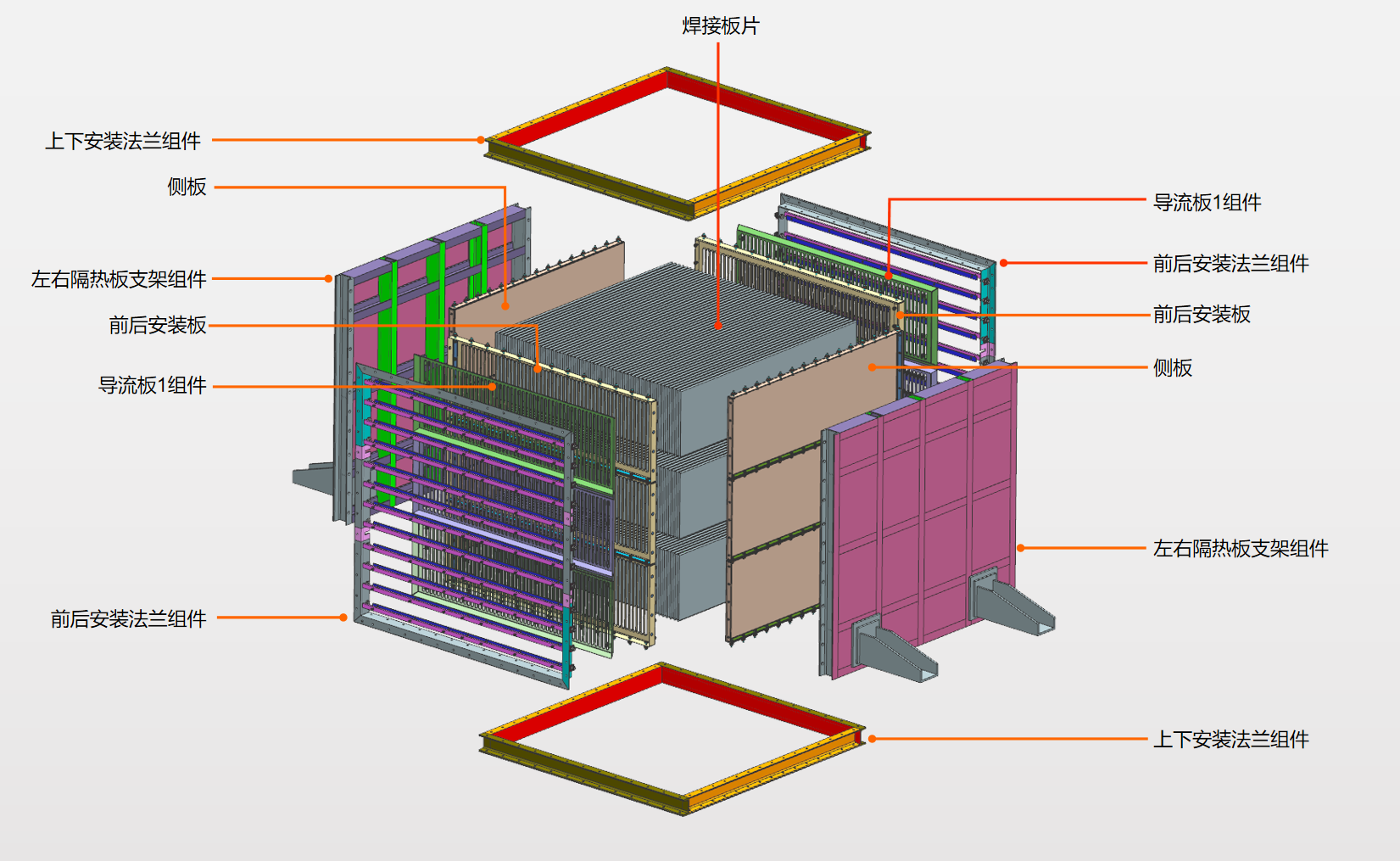

The design of the heat exchanger is modular, one of the heat exchange units is composed of heat exchange plates, support frames, side plates, upper and lower flanges, front and rear flanges, and the modules can be combined to meet the requirements of different working conditions according to the load size.
The dimensions of a single module are 1630x1630x1678 and the heat exchange area is 92m2
